KM0-M2220-00X KM5-M2611-00X SMT Spare Parts Yamaha X Y Aixs Coupling YV100XG Ball Screw

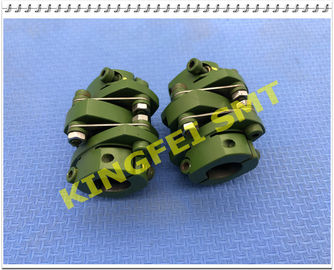

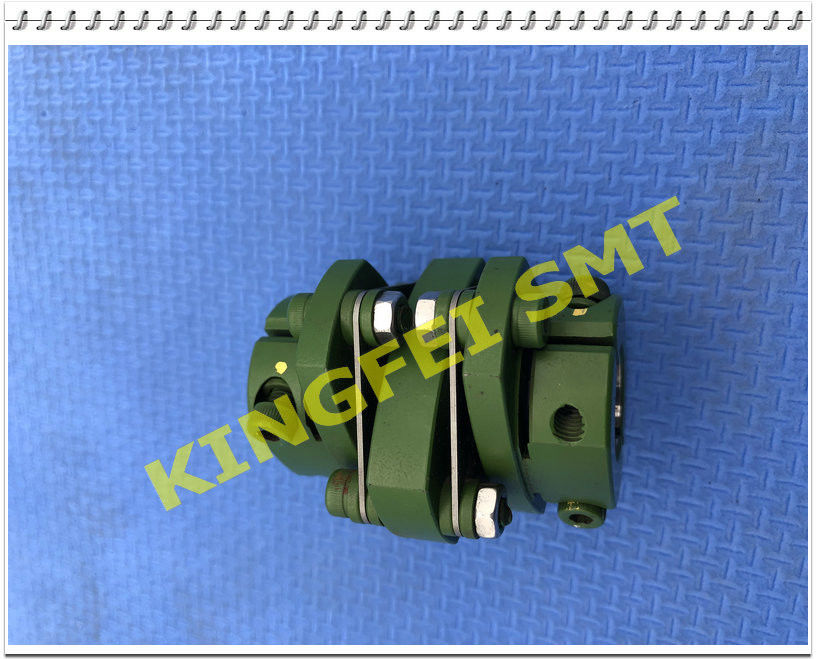

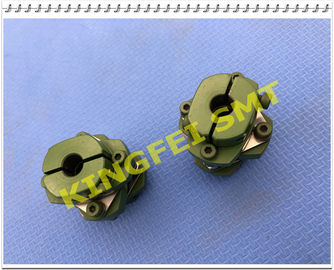

KM0-M2220-00X COUPLING,X-AXIS For YV100XG Ball Screw

KM0-M2220-00X KM5-M2611-00X YAMAHA X Y Aixs Coupling YV100XG Ball Screw

Detail Information:

1, Part Name: Coupling,X-Axis

2, Part Number:KM0-M2220-00X KM5-M2611-00X

3, Application:YV100XG Ball Screw

4, Condition: Original New and Used

5, Brand: Yamaha

1 KV7-M2211-02X FRAME X AXIS 1

2 KV7-M2213-02X PLATE A,X AXIS 1

3 KV7-M2214-02X PLATE B, X AXIS 1

4 KM0-M2220-00X COUPLING,X-AXIS 1

5 KV7-M2231-00X SPACER R,NUT 3

6KM0-M2233-00X SPACER R2 NUT 1

7 KV8-M2236-00X PLATE A 1

8 KV8-M2237-00X PLATE B 1

9 KV7-M2239-00X BRACKET 1 2

10 KM0-M2241-00X HOLDER,MOTOR 1

11 KV7-M2242-00X HOLDER,BRG X AXIS 1

12 KV7-M2645-00X BRG.,ANGULAR 1

13 KV7-M2261-00X HOLDER,HEAD 1

14 KV7-M2271-00X SCREW BALL X AXIS 1

14-1 KV7-M2271-01X SCREW BALL X AXIS Y1 M9X0010

15 90K52-87174X AC SERVO MOTOR 1

16KV7-M6 53A-00X SENSOR,1 ASSY 1 L=600

17 KV7-M653E-00X SENSOR,2 ASSY 1 L=600

18 K47-M2276-S0X X-AXIS GUIDE SET 1

19 KV7-M2267-00X CABLE, DUCT 1

20 K94-M220A-00X TAPE X-AXIS 1

21 K94-M220A-10X TAPE X-AXIS 1

22 KV7-M2282-00X DOG, ORG 1

23 KV7-M2283-00X DOG, 2ND LIMIT 2

24 KV7-M226B-00X PLATE 2

25 KV7-M2291-00X BRACKET,SENSOR 1

26KV7-M2247-00X BLOCK,STOPPER X 1

27 KV7-M2248-00X DAMPER 1 2

28 KM0-M2251-00X NYLOCK BOLT 16M 8X22L

29 KV7-M226A-00X COVER CABLE 1

30 KV7-M2268-00X BRACKET 1,TAPE 1

31 KV7-M2269-00X BRACKET 2,TAPE 1

32 KV7-M220A-01X TAPE ,X DUCT 1

33 KV7-M220B-00X TAPE 2,X DUCT 1

34 KV7-M2266-00X PLATE,NUT 2

35 KV7-M2240-00X SLEEVE,BRG. 1

36KV7-M2243-00X HOUSING,BRG. X 1

37 KV7-M2244-00X COVER,BRB. HOUSING 1

38 KV7-M2246-00X COIL SPRING M 6

39 KV7-M2647-00X OIL SEAL 2

40 KV7-M2648-00X SPACER 3

41 KG2-M9173-00X LOCK NUT 1

42 KM0-M223A-00X SEAL CONNECTOR 1

43 KV7-M2256-00X GRIP 2

44 KV7-M2257-00X SPACER GRIP 2

45 KV7-M220C-00X TAPE 3,X DUCT 1

46KV7-M221A-A0X COVER,DUCT ASSY 1

47 KV7-M2295-01X BRACKET,PIN 2

48 KV7-M2296-00X BRACKET,SCREW 2

49 KV7-M2297-00X TAPER PIN 4 8X30

50 KV7-M2298-00X NYLOCK SET,SCREW 6

51 KM0-M2252-00X STOPPER 1

52 99480-06014 PIN,PARALLEL
