303A Nozzle KHN-M7740-A0X Yamaha Nozzle 303A Assy YSM20 YS12 YS24 YSM10

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A OK MHX0059-2011/11/25
KHN-M7710-A3 NOZZLE 301A ASSY. 1 OK MG60126-2010/7/8
KHN-M7710-A2 NOZZLE 301A ASSY. 1
2
KHN-M7711-05 BODY,NOZZLE 301 1 OK MHX0059-2011/11/25
KHN-M7711-04 BODY, NOZZLE 301 1 OK MG60126-2010/7/8
KHN-M7711-03 BODY, NOZZLE 301 1
3 KHN-M7713-00 SPRING 1 Black
4 KHN-M7714-00 PIN 1
5 KHN-M7715-00 CLIP 1
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A OK MHX0059-2011/11/25
KHN-M7720-A2 NOZZLE 302A ASSY. 1 OK MG60126-2010/7/8
KHN-M7720-A1 NOZZLE 302A ASSY. 1
7
KHN-M7721-04 BODY, NOZZLE 302 1 OK MHX0059-2011/11/25
KHN-M7721-03 BODY, NOZZLE 302 1 OK MG60126-2010/7/8
KHN-M7721-02 BODY, NOZZLE 302 1

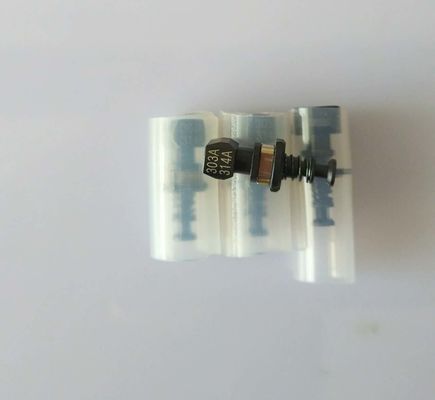

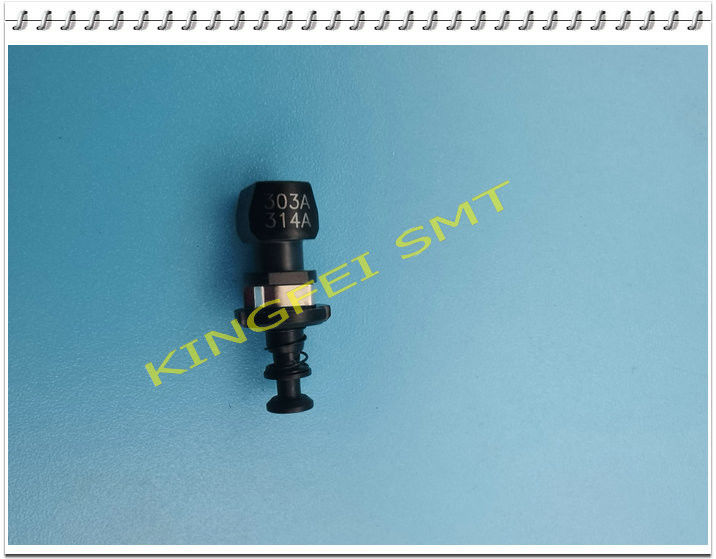

8 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
9 KHY-M7741-00 BODY, NOZZLE 303/314 1
10 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
11 90990-17J013 O-RING 5
12 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
13 KHY-M7771-00 BODY, NOZZLE 306/317 1
14 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A (Narrow adjacent Type)
15 KHY-M77A1-00 BODY, NOZZLE 310 1
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7710-A3 NOZZLE 311A ASSY. 1 OK MG60126-2010/7/8
KHY-M7710-A2 NOZZLE 311A ASSY. 1 NG MFX0107-2010/1/28
KHY-M7710-A1 NOZZLE 311A ASSY. 1
17
KHY-M7711-03 BODY, NOZZLE 311 1 OK MHX0059-2011/11/25
KHY-M7711-02 BODY, NOZZLE 311 1 OK MG60126-2010/7/8
KHY-M7711-01 BODY, NOZZLE 311 1 NG MFX0107-2010/1/28
KHY-M7711-00 BODY, NOZZLE 311 1
18 KHN-M7713-10 SPRING 1
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7720-A2 NOZZLE 312A ASSY. 1 OK MG60126-2010/7/8
KHY-M7720-A1 NOZZLE 312A ASSY. 1
20
KHY-M7721-02 BODY,NOZZLE 312 1 OK MHX0059-2011/11/25
KHY-M7721-01 BODY, NOZZLE 312 1 OK MG60126-2010/7/8
KHY-M7721-00 BODY, NOZZLE 312 1
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A (Narrow adjacent Type) OK MHX0059-2011/11/25
KHY-M7730-A1 NOZZLE 313A ASSY. 1 OK MG60126-2010/7/8
KHY-M7730-A0 NOZZLE 313A ASSY. 1
22
KHY-M7731-02 BODY,NOZZLE 313 1 OK MHX0059-2011/11/25
KHY-M7731-01 BODY, NOZZLE 313 1 OK MG60126-2010/7/8
KHY-M7731-00 BODY, NOZZLE 313 1
23 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A
24 KHY-M7781-00 BODY, NOZZLE 307/318 1
25 KGS-M7742-00 LABEL,NOZZLE 1
26 90990-17J014 O-RING 5
27 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH30013-2011/3/9
28 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH90007-2011/9//7
