KGN-M4255-101 YV100XG CF Card Hard Disk KGN-M4255-100

KGN-M4255-101 YV100XG CF Card Hard disk KGN-M4255-100

Detail Information:

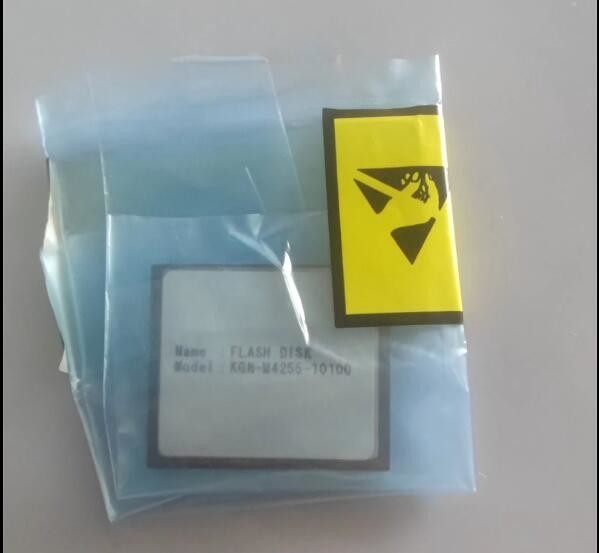

1, Part Name: Flash Disk
2, Part Number: KGN-M4255-101
3, Application: Yamaha YV100XG Machine
4, Original new

KM5-M4200-02X SYSTEM UNIT ASSY
KM5-M441H-02X VISION BOARD ASSY
KGN-M5840-022 SERVO BOARD ASSY.
KGN-M5880-004 D.POWER BOARD ASSY.
KGN-M5810-305 DRIVER BOARD ASSY.
KV8-M4572-012 IO BOARD HEAD ASSY.
KGN-M5810-405 DRIVER BOARD ASSY.
KGT-M4580-012 IO CONVERYOR BOARD ASSY
KGN-M5840-022 SERVO BOARD ASSY.
KM5-M5840-005 SERVO BOARD ASSY.
KGN-M5810-110 DRIVER BOARD ASSY.
KGN-M5810-113 DRIVER BOARD ASSY.
KGN-M5810-110 DRIVER BOARD ASSY.
KGN-M5840-100 SERVO BOARD ASSY.
KGN-M5840-023 SERVO BOARD ASSY.
KGN-M5840-040 SERVO BOARD ASSY.
KGN-M5840-035 SERVO BOARD ASSY.
KGA-M6590-000 E.COM ASSY
KGR-M4530-XXX INTERFACE BOARD ASSY.
KGN-M5880-008 D.POWER BOARD ASSY.
KW3-M4209-110 SYSTEM BOARD ASSY.
KGS-M4200-110 SYSTEM BOARD ASSY.
KV8-M4572-002 IO BOARD HEAD ASSY.
KV8-M4572-110 IO BOARD HEAD ASSY.
KGT-M4570-000 IO BOARD HEAD ASSY.
KV8-M4572-020 IO BOARD HEAD ASSY.
KV8-M4572-100 IO BOARD HEAD ASSY.
KV7-M4550-110 CONNECTION BOARD ASSY
KM5-M441H-021 VISION BOARD ASSY
KJ0-M5810- DRIVER BOARD ASSY
KM5-M4582-101 IO CONVEYOR UNIT ASSY
KV8-M6474-000 LED DRIVER BOARD.
IO HEAD Board ASSY
SYSTEM UINT ASSY
KM5-M5840-021 SERVO BOARD ASSY
KGA-M4550-100 TOPAZ XI II
KHL-M441H-13 VISION BOARD ASSY.YG12 ,YS12
KJO-M5810-E4X KJ0-M5810-44X DRIVER BOARD ASSY.
KV1-M5303-00X KV1-M5303-01X YV100X YV88X
KM5-M4200-01X YAMAHA SYSTEM UNIT ASSY.CPU Part nr.: 5322 218 12101
KM5-M5840-03X KM5-M5840-04X YV100XG,YV100X
KV1-M441H- YV100XG VISIONYAMAHA YV100XG
KM5-M441H-02X Part nr.: 9498 396 00494 YV100X VISION
KV7-M4550-100 Connection board assyPart nr.: 9965 000 09030
YV100XG KW3-M4209-00X KW3-M4209-XXX SYSTEM UNIT ASSY
KV1-M441H-17X YV100XG VISION板 YAMAHA YV100XG
YG100
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-03X SERVO BOARD ASSY 3
3 KGS-M4200-00X SYSTEM UNIT ASSY 1
4 KGK-M5810-01X DRIVER BOARD ASSY 1
5 KGN-M5810-40X DRIVER BOARD ASSY 1
6 KGK-M5810-41X DRIVER BOARD ASSY 1
7 KGJ-M441H-03X VISION BOARD ASSY 1
8 KGJ-M441H-30X VISION BOARD ASSY 1
9 KGS-M4530-11X REMOTE IF BOARD ASSY 1
10 KGN-M5880-00X D.POWER BOARD ASSY 1
11 KGK-M4136-10X PANEL NO VISION 1
12 KW3-M4256-00X CD-ROM DRIVE 1
13 KGK-M4255-00X FLASH DISK 1
14 KGS-M5303-00X SW POWER DC5 1
15 KGS-M5303-10X SW POWER DC12 1
16 KGK-M4185-10X FAN MOTOR ASSY 3
YG200
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-02X SERVO BOARD ASSY 3
3 KGK-M4200-00X SYSTEM UNIT ASSY 1
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 KGN-M5810-10X DRIVER BOARD ASSY 1
6 KGJ-M441H-02X VISION BOARD ASSY 2
7 KGR-M4530-01X INTERFACE BOARD ASSY 1
8 KGN-M5880-00X D. POWER BOARD ASSY 1
9 KGK-M4136-10X PANEL NO VISION 1
10 KW3-M4256-00X CD-ROM DRIVE 1
11 KGN-M4230-00X FLASH BOARD ASSY 1 512MB
11A KW3-M4230-00X FLASH BOARD ASSY 1 1GB(Op) M3X0020
12 KGK-M4255-00X FLASH DISK 1 512MB
12A KGK-M4255-10X FLASH DISK 1 1GB(Op) M3X0020
13 KGA-M5303-00X SW POWER DC5 1
14 KGK-M5303-10X SW POWER DC12 1
15 KGA-M4185-10X FAN MOTOR ASSY 3
YG200L
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No. Compatibility
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-02X SERVO BOARD ASSY 3
3 KGK-M4200-00X SYSTEM UNIT ASSY 1
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 KGN-M5810-10X DRIVER BOARD ASSY 1
6 KGJ-M441H-02X VISION BOARD ASSY 2
7 KGR-M4530-01X INTERFACE BOARD ASSY 1
8 KGN-M5880-00X D. POWER BOARD ASSY 1
9 KGK-M4136-10X PANEL NO VISION 1
10 KW3-M4256-00X CD-ROM DRIVE 1
11 KGN-M4230-00X FLASH BOARD ASSY 1
12 KGK-M4255-00X FLASH DISK 1
13 KGA-M5303-00X SW POWER DC5 1
14 KGK-M5303-10X SW POWER DC12 1
15 KGA-M4185-10X FAN MOTOR ASSY 3
YV88X
No. Part No. Part Name Q&＃39;ty Remarks Date of change Revised No. Compatibility
1 KV1-M4110-00X BOX ASSY.C/R 1
1-1 KV1-M4110-10X BOX ASSY.C/R 1 (2001/1/15) M110049 OK
2 KM5-M4510-20X MOTHER BOARD ASSY. 1
3 KM5-M5840-02X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002.05.09 M100114 OK
4 KM5-M4200-01X SYSTEM UNIT ASSY. 1
4-1 KM5-M4200-02X SYSTEM UNIT ASSY. 1 (1999.06.30) M960134 OK
4-2 KM5-M4200-03X SYSTEM UNIT ASSY. 1 (2000.03.08) M030168 OK
5 KJ0-M5810-L2X DRIVER BOARD ASSY. 1
5-1 KJ0-M5810-L3X DRIVER BOARD ASSY 1 (1A) (1999.06.21) M960067 OK
6 KJ0-M5810-K2X DRIVER BOARD ASSY. 1
6-1 KJ0-M5810-K3X DRIVER BOARD ASSY 1 (1B) (1999.06.21) M960067 OK
7 KM5-M441H-02X VISION BOARD ASSY. 1
7-1 KM5-M441H-03X VISION BOARD ASSY 1 (2000.03.02) M020111 OK
8 KM5-M5880-11X D.POWER ASSY. 1
9 KJ0-M4134-10X PANEL NO SERVO 1
10 KJ0-M4132-10X PANEL ,NO DRIVER 1
11 KM5-M4138-10X PANEL LEFT 2 1
12 KJ1-M4185-10X FAN MOTOR ASSY 3
13 KV1-M5303-00X SW POWER DC5 1
13-1 KV1-M5303-01X SW POWER DC5 1 (2000.09.04) M080150 OK
14 KV1-M5303-10X SW POWER DC12 1
14-1 KV1-M5303-11X SW POWER DC12 1 (2000.09.04) M080150 OK
15 KL0-M53E2-00X TRANS 1 ASSY KL0 1
16 KM5-M4255-00X FLASH DISK 1 M230020
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1 M960067
YV100II
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1 M9600
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1 M960067
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1 M960067
YV100X
No. Part No. Part Name Q&＃39;ty Remarks Date Revised No.
1 KV1-M4110-00X BOX ASSY,C/R 1
2 KM5-M4510-20X MOTHER BOARD ASSY. 1
3 KM5-M5840-02X SERVO BOARD ASSY. 1
4 KM5-M4200-01X SYSTEM UNIT ASSY. 1
4-1 KM5-M4200-02X SYSTEM UNIT ASSY 1 X2 M960134
5 KJ0-M5810-K2X DRIVER BOARD ASSY. 1
5-1 KJ0-M5810-K3X DRIVER BOARD ASSY 1 X1 M960067
6 KM5-M441H-02X VISION BOARD ASSY. 1
7 KM5-M5880-11X D.POWER ASSY. 1
8 KJ0-M4134-10X PANEL NO SERVO 1
9 KJ0-M4132-10X PANEL ,NO DRIVER 2
10 KM5-M4138-10X PANEL LEFT 2 1
11 KJ1-M4185-10X FAN MOTOR ASSY 3
12 KV1-M5303-00X SW POWER DC5 1
13 KV1-M5303-10X SW POWER DC12 1
14 KL0-M53E2-00X TRANS 1 ASSY KL0 1
1 KM5-M5840-02X SERVO BOARD ASSY. 1
2 KJ0-M5810-H2X DRIVER BOARD ASSY. 1 for YTF only
2-1 KJ0-M5810-H3X DRIVER BOARD ASSY 1 X1 M960067
3 KJ0-M5810-G2X DRIVER BOARD ASSY. 1 for ATS only
3-1 KJ0-M5810-G3X DRIVER BOARD ASSY 1 X1
YV100XG
No. Part No. Part Name Q&＃39;ty Remarks Date of change Revised No. Compati.
1 KGA-M4110-00X BOX ASSY. C/R 1
2 KGA-M4510-00X MOTHER BOARD ASSY. 1
3 KM5-M5840-03X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002/5/9 M100113 OK
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 H010235 (2007/1/12) MCY0115 SET
KW3-M4209-00X SYSTEM UNIT ASSY. 1 S.T.D (2003/9/24) M390061
KW3-M4209-10X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER (2003/9/24) M390061
KW3-M4209-21X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2004/2/10) M420003
4-1
KW3-M4209-11X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER (2007/3/22) MD30053 NG
KW3-M4209-22X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2007/3/22) MD30053 NG
5 KJ0-M5810-K4X DRIVER BOARD ASSY. 1 (1B)
5-1 KJ0-M5810-K5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) MCY0115 SET
6 KM5-M5882-11X D.POWER ASSY. 1
7 KJ0-M4134-10X PANEL NO SERVO 2
8 KJ0-M4132-10X PANEL. NO DRIVER 1
9 KGA-M4185-10X FAN MOTOR ASSY 3
10 KGA-M5303-00X SW POWER DC5 1
11 KW7-M5303-10X SW POWER DC12 1
12 KGA-M53E2-00X TRANS 1 ASSY KGA 1
13 KV1-M441H-17X VISION UNIT ASSY. 1
14 KW3-M4220-10X APPLE BOARD ASSY. 1
15 KGA-M4136-10X PANEL, NO VISION 1
16 KGN-M4255-00X FLASH DISK 1 W / ADAPTER
16-1 KGN-M4255-20X FLASH DISK 1 W / O ADAPTER 2003/11 M3X0032
17 KW3-M4256-00X CD-ROM 1
1 KM5-M5840-03X SERVO BOARD ASSY. 1
1-1 KM5-M5840-04X SERVO BOARD ASSY. 1 2003/6/27 M100113 OK
1-2 KM5-M5840-05X SERVO BOARD ASSY. 1 (2007/1/12) MCY0115 SET
2 KJ0-M5810-H4X DRIVER BOARD ASSY. 1 for YTF only (2)
2-1 KJ0-M5810-H5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
3 KJ0-M5810-G4X DRIVER BOARD ASSY. 1 for WATS only (2)
3-1 KJ0-M5810-G5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
4 KJ0-M5810-F4X DRIVER BOARD ASSY. 1 for ATS-M only (2)
4-1 KJ0-M5810-F5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
