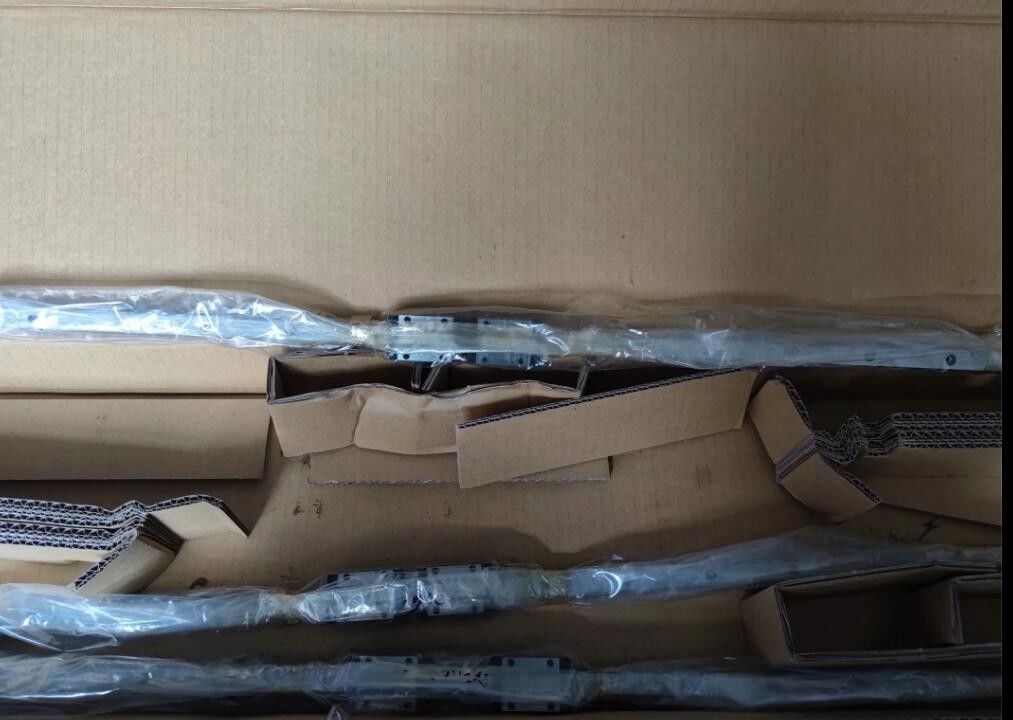

KV7-M2276-S0X -X Axis Guide Set YV100X NSK Guide K47-M2276-S0X

KV7-M2276-S0X -X Axis Guide Set YV100X NSK Guide K47-M2276-S0X

Detail Information:

1,Part Name: YV100X X Axis Guide

2, Part Number: KV7-M2276-S0X

3, Brand: NSK

1 KV7-M2211-02X FRAME X AXIS 1
2 KV7-M2213-02X PLATE A,X AXIS 1
3 KV7-M2214-02X PLATE B, X AXIS 1
4 KM0-M2220-00X COUPLING,X-AXIS 1
5 KV7-M2231-00X SPACER R,NUT 3
6KM0-M2233-00X SPACER R2 NUT 1
7 KV8-M2236-00X PLATE A 1
8 KV8-M2237-00X PLATE B 1
9 KV7-M2239-00X BRACKET 1 2
10 KM0-M2241-00X HOLDER,MOTOR 1
11 KV7-M2242-00X HOLDER,BRG X AXIS 1
12 KV7-M2645-00X BRG.,ANGULAR 1
13 KV7-M2261-00X HOLDER,HEAD 1
14 KV7-M2271-00X SCREW BALL X AXIS 1
14-1 KV7-M2271-01X SCREW BALL X AXIS Y1 M9X0010
15 90K52-87174X AC SERVO MOTOR 1
16KV7-M6 53A-00X SENSOR,1 ASSY 1 L=600
17 KV7-M653E-00X SENSOR,2 ASSY 1 L=600
18 K47-M2276-S0X X-AXIS GUIDE SET 1
19 KV7-M2267-00X CABLE, DUCT 1
20 K94-M220A-00X TAPE X-AXIS 1
21 K94-M220A-10X TAPE X-AXIS 1
22 KV7-M2282-00X DOG, ORG 1
23 KV7-M2283-00X DOG, 2ND LIMIT 2
24 KV7-M226B-00X PLATE 2
25 KV7-M2291-00X BRACKET,SENSOR 1
26KV7-M2247-00X BLOCK,STOPPER X 1
27 KV7-M2248-00X DAMPER 1 2
28 KM0-M2251-00X NYLOCK BOLT 16M 8X22L
29 KV7-M226A-00X COVER CABLE 1
30 KV7-M2268-00X BRACKET 1,TAPE 1
31 KV7-M2269-00X BRACKET 2,TAPE 1
32 KV7-M220A-01X TAPE ,X DUCT 1
33 KV7-M220B-00X TAPE 2,X DUCT 1
34 KV7-M2266-00X PLATE,NUT 2
35 KV7-M2240-00X SLEEVE,BRG. 1
36KV7-M2243-00X HOUSING,BRG. X 1
37 KV7-M2244-00X COVER,BRB. HOUSING 1
38 KV7-M2246-00X COIL SPRING M 6
39 KV7-M2647-00X OIL SEAL 2
40 KV7-M2648-00X SPACER 3
41 KG2-M9173-00X LOCK NUT 1
42 KM0-M223A-00X SEAL CONNECTOR 1
43 KV7-M2256-00X GRIP 2
44 KV7-M2257-00X SPACER GRIP 2
45 KV7-M220C-00X TAPE 3,X DUCT 1
46KV7-M221A-A0X COVER,DUCT ASSY 1
47 KV7-M2295-01X BRACKET,PIN 2
48 KV7-M2296-00X BRACKET,SCREW 2
49 KV7-M2297-00X TAPER PIN 4 8X30
50 KV7-M2298-00X NYLOCK SET,SCREW 6
51 KM0-M2252-00X STOPPER 1
52 99480-06014 PIN,PARALLEL
