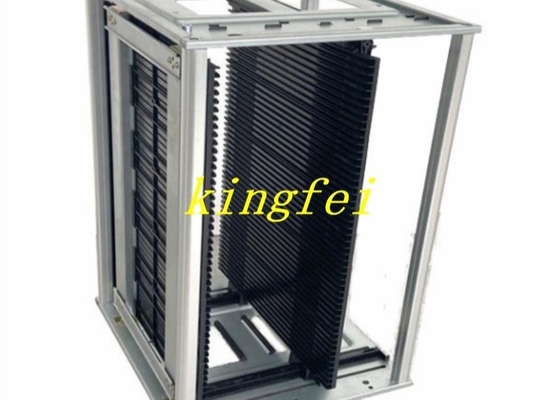

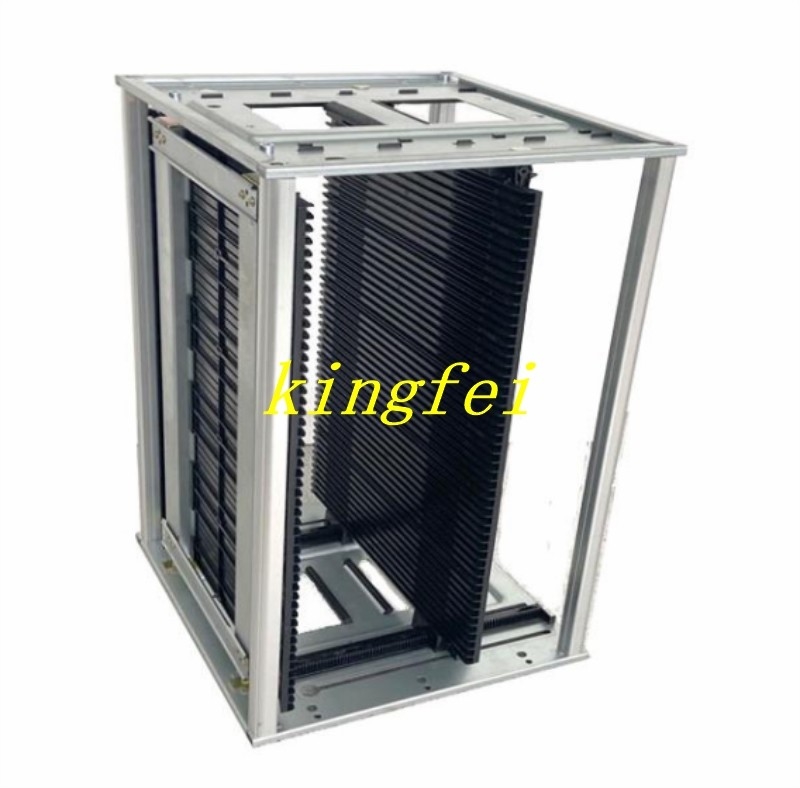

CJ-8301 Anti static material rack(SMT upper plate rack) CJ-8301B Anti static system engineering

Product Details:

Place of Origin:	China
Brand Name:	Anti static system engineering
Model Number:	Anti static material rack(SMT upper plate rack)

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Paper pack
Delivery Time:	within 1~5days
Payment Terms:	T/T, Western Union, MoneyGram, MoneyGram, MoneyGram, MoneyGram, MoneyGram
Supply Ability:	100000pcs

Contact Now

Detailed Product Description

Part Name:	Anti Static Material Rack(SMT Upper Plate Rack)	Part Number:	CJ-8301B
Brand:	Anti Static System Engineering	Origin:	China

CJ-8301 Anti static material rack(SMT upper plate rack) CJ-8301B Anti static system engineering

Detailed parameters:

Product Name: Anti static Material Rack (SMT Upper Plate Rack)

Product specifications: 355 * 320 * 563mm

Adjustment method: gear adjustment

Storage PCB size: 350 * (50mm-250mm)

Number of PCBs that can be stored: 50PCS

Side panel groove spacing: 10mm

Side panel groove depth: 3.5mm

Side panel groove width: 5mm

Surface resistance value: 10E4-10E9 ohms

Material: Anti static PP material

Product unit weight: 5.6KG

Reference position: A=34MM, B=34MM

Product specifications	355 * 320 * 563mm
Storage PCB size	350 * (50mm-250mm)
Side panel groove spacing	10mm
Side panel groove depth	3.5mm
Side panel groove width	5mm
Product unit weight	5.6KG
Reference position	A=34MM, B=34MM

Esd Box Material

Large Esd Box

Esd Safe Tray

An ESD (Electrostatic Discharge) plastic tray, also known as an ESD tray or ESD container, is a specially designed tray that helps protect electronic components and devices from damage caused by electrostatic discharge. Electrostatic discharge can occur when there is a sudden flow of electric current between two objects with different electrical potentials, and it can potentially damage or destroy sensitive electronic components.

ESD trays are made from materials that have low electrical conductivity to prevent the buildup and discharge of static

electricity. These trays are typically constructed using conductive or static-dissipative plastics, such as polypropylene or

polystyrene, which have been infused with additives to provide the desired ESD properties.

The purpose of an ESD plastic tray is to provide a safe and controlled environment for storing, transporting, and handling

sensitive electronic components. These trays are designed to dissipate any static charges that may accumulate on the surface, preventing them from damaging the components placed within.

ESD plastic trays often have compartments or slots to hold individual components securely, preventing them from moving or coming into contact with each other, which could lead to damage through friction or impact. The trays may also feature lids or covers to provide additional protection from environmental factors like dust or moisture.

These trays are commonly used in electronic manufacturing and assembly processes, where electrostatic discharge poses a significant risk to sensitive components. They help to ensure the integrity and reliability of electronic devices by minimizing the potential for ESD-related failures.

When selecting an ESD plastic tray, it's important to consider the specific requirements of your application, such as the size and shape of the components, the necessary capacity, and the level of ESD protection needed. There are various sizes, designs, and configurations available to suit different needs. It's also worth noting that ESD trays are often part of a broader ESD control program that includes other measures such as grounding, ESD flooring, and proper handling procedures.
