Human Body Electrostatic Discharge Device Instrumentation And Devices Anti Static System Engineering

Human body electrostatic discharge device Instrumentation and devices Anti static system engineering

1. Working power supply: High performance built-in lithium battery

2. Sleep current: ＜ 1mA

3. Working current: ＜ 5mA

4. Working temperature: -40 ℃~60 ℃

5. Response time: ＜ 1s

6. Grounding resistance: ≤ 55 Ω

7. Explosion proof rating: ExiaICT4 Gb

8. Withstand static voltage: ± 20KV

9. Alarm method: Sound and light alarm (>90dB, 30cm straight-line distance measurement)

Product features:

1. Ultra low power consumption design, no need to replace the battery during normal use;

2. Touch sensing, no mechanical moving parts;

3. Whole epoxy resin sealing, anti-corrosion, waterproof, and moisture-proof;

4. Explosion proof touch ball, safely releases static electricity, and does not produce electric shock when in contact with the human body;

5. Sound and light alarm, real-time indication of equipment working status, convenient to use;

6. Independent detection of grounding wire, grounding resistance ≤ 55 Ω, ensuring reliable grounding

7. Equipped with explosion-proof, anti-static and static grounding with 7mPU spiral cable, and prompt to return to its original position in a timely manner

8. One product, two functions, human body static electricity and vehicle body static electricity can be eliminated simultaneously;

Product Introduction:

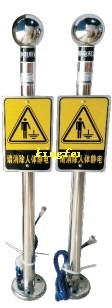

The human vehicle integrated electrostatic grounding release alarm is a new generation of explosion-proof product designed for the petrochemical industry. It is both a human body electrostatic release device and an electrostatic grounding alarm. It is a dual-use device with an integrated design, easy installation, and simple operation.

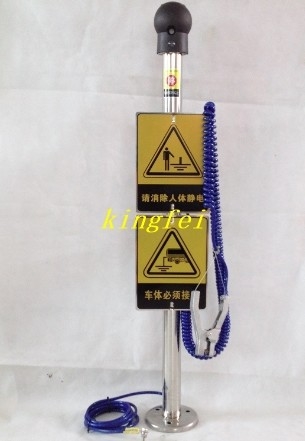

Human vehicle integrated static discharge alarm, equipped with static grounding clip, with high-strength alloy top pin at the top, paint and rust removal to ensure reliable grounding of the vehicle body; The clamp body is equipped with a constant force spring, which maintains its elasticity after 30000 kneading cycles. Equipped with 7mPU spiral cable, the cable is oil resistant, corrosion-resistant, suitable for high and low temperatures ranging from -60 ℃ to 40 ℃, and anti-static. The specially designed warning sign "Please eliminate human static electricity" has a beautiful and elegant appearance, simple and reliable installation, and provides effective protection for enterprise safety production.

The human vehicle integrated electrostatic grounding and release alarm system makes up for the shortcomings of current human body electrostatic discharge methods. Reasonable human body electrostatic discharge resistance extends the time for human body electrostatic discharge, reduces the instantaneous energy released by human body electrostatic discharge, and effectively avoids the occurrence of fire and explosion accidents and the phenomenon of human body being electrocuted.
