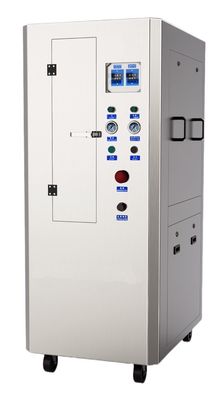

Name: Professional SMT Stencil Cleaner Machine High Speed Automated PCB Cleaning System
Brand: KINGFEI
SKU: KINGFEI
Rating: 4.7 (131 reviews)

Home Products Surface Mount Placement Machine

Professional SMT Stencil Cleaner Machine High Speed Automated PCB Cleaning System

Product Details:

Place of Origin:	China
Brand Name:	KINGFEI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	wooden case
Delivery Time:	3~5days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Overall Dimension:	1000x980x1730mm	Cleaning Method:	360 ° Rotary Spray Cleaning And Compressed Air Drying
Size Of Used Rubber Screen:	740x740x40mm	Reservoir Capacity:	50L
Minimum Detergent Consumption:	30L	Equipment Weight:	320Kg

**Professional SMT Stencil Cleaner Machine | Automated PCB Cleaning System for High-Precision Manufacturing**

This fully pneumatic steel mesh washing machine is a new type and high-performance pneumatic cleaning equipment, which uses compressed air as energy. The whole machine is completely closed, so that the odor of various liquids can be blocked and discharged through the designated path.The self equipped circulating filtration system can be used repeatedly only by adding solvent and does not need to be replaced.No potential safety hazard exists, so that the operator can use it with confidence.The features of environmental protection, low consumption, high safety, and fully automatic operation make the whole operation simple and more valuable.

Technical parameters:

Overall dimension	1000(W) mm×980(L) mm×1730(H)mm
Cleaning method	360 ° rotary spray cleaning and compressed air drying
Size of used rubber screen	Basic specification: 740mm×740mm×40mm(Max)
Reservoir capacity	50L(Max)
Minimum detergent consumption	30L
Adopt three-level filtering mode	Primary filtration: 10μm
	Once (BAG FILTER): 5μm
	2 times (MICRO WIND FILTER): 1μm
exhaust	φone hundred and twenty-five×25mm (H) maximum gravitational wind speed 3m/sec
Internal and external materials	Stainless steel+steel plastic spraying
Equipment weight	320Kg (excluding detergent)
Air supply pressure	0.4～0.6Mpa
Air flow	400～700L/Min

SMT Stencil Cleaner Machine is an advanced, automated solution designed for electronics manufacturers seeking unparalleled efficiency and reliability in stencil and PCB cleaning.

Engineered with cutting-edge ultrasonic and spray jet technology, this industrial-grade cleaner removes solder paste, flux residues, and contaminants in under 90 seconds, ensuring optimal stencil performance and SMT production line uptime.

Ideal for SMT factories, PCB assembly plants, and automotive electronics manufacturers, it combines eco-friendly operation with IoT-enabled smart features for global compliance and seamless integration into Industry 4.0 workflows.

Key Features & Benefits**
✅ **Ultra-Fast Cleaning Cycle**: Achieve 99.9% residue removal in 90 seconds with dual-mode cleaning (ultrasonic + high-pressure spray).
✅ **Eco-Friendly Flexibility**: Compatible with both water-based and VOC-free solvents to meet EU RoHS, REACH, and US EPA standards.
✅ **Smart IoT Integration**: Monitor cleaning cycles, energy usage, and maintenance alerts remotely.
✅ **Durable & Adaptive Design**: Stainless steel construction with humidity/heat-resistant components for harsh environments (IP54 rated).
✅ **User-Centric Interface**: Multi-language touchscreen (EN/DE/JP/ES) and one-click automation for minimal training requirements.

Why Choose Us?
Proven Performance: Trusted by Tier-1 EMS providers like Foxconn and Jabil.
Cost Savings: Reduce solvent usage by 30% and labor costs by 50% vs. manual cleaning.
Global Service Network: 24/7 remote diagnostics + on-site support in 15 countries.

Applications:
- SMT Stencil Regeneration
- PCB Post-Reflow Cleaning
- Semiconductor Component Maintenance
