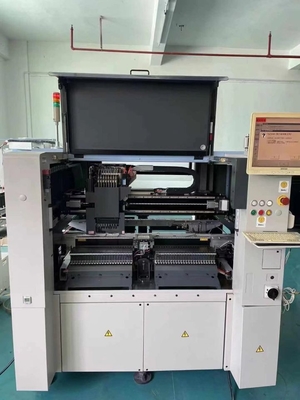

Name: Yamaha YG100RB Chip Mounter SMT Yamaha Pick And Place Machine
Brand: Yamaha
SKU: YG100RB
Rating: 4.6 (131 reviews)

Yamaha YG100RB Chip Mounter SMT Yamaha Pick And Place Machine

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Speed:	24000 CPH	Component Range:	0402mm (01005 Inch) SOP SOJ QFP Connector PLCC
Component Height:	15mm	Power Supply:	Three Phase
Air Supply:	0.55MPa	Weight:	1630KG
Highlight:	Yamaha YG100RB Chip Mounter , SMT Yamaha YG100RB , SMT Yamaha pick and place machine

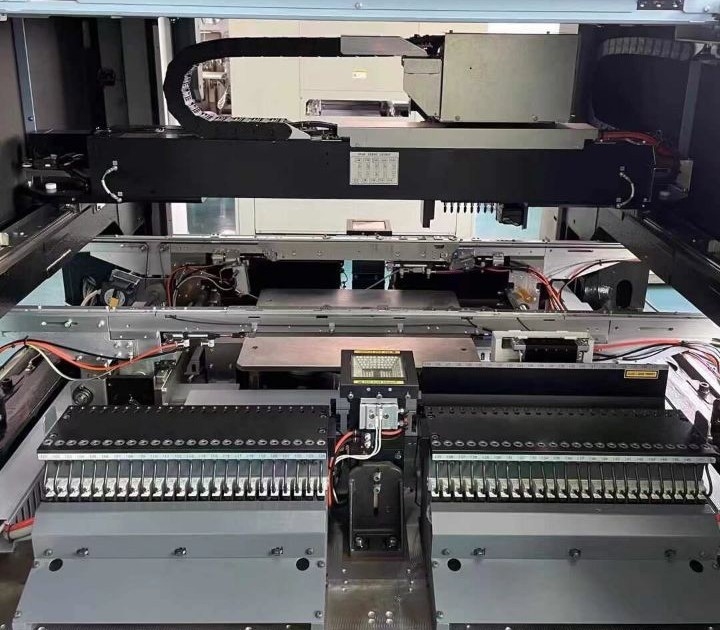

Yamaha YG100RB Mounter is a high-speed pick and place machine, High performance but cost-effective.

· May correspond to the 0402 CHIP ~ □ 45mm components, long connectors wide range of components

· All the time, Mount absolute accuracy of ± 50 μm (CHIP), ± 30μm (QFP)

· Object element 15mm corresponding height

· Long size corresponding substrate (~ L510mm)

Model	YG100RA (the FNC type) / YG100RB (SF type) Model: KHW-000
A Dui like substrate	L50 × W50mm ~ L510 × W460mm (Note 1) (Note 2)
Mount efficiency (Optimum conditions)	24,000 CPH / CHIP (equivalent to 0.15 seconds / CHIP)
Placement accuracy *(Standard components of the Company)*	Absolute accuracy (μ +3 σ): ± 0.05mm/CHIP, ± 0.05mm/QFP The repeating accuracy (3σ): ± 0.03mm/CHIP, ± 0.03mm/QFP,
Object element	0402 (mm Department Name) □ 55mm components, SOP / SOJ, QFP, connector, PLCC, CSP, / BGA, long connector (Note 3) (Note 4) (Note 5) Following the object the elements height of 15mm (Note 6)
The type of components	96 species (the converted 8mm Tape) (Note 1)
Power Specifications	Three-phase AC 200/208/220/240/380/400/416 V ± 10% 50/60 Hz
Gas supply sources	The 0.55MPa more, clean and dry state
External Dimensions (Note 7)	L1, 650 × W1, 562 (cover plate side) × H1, 470mm (cover above) L1, 650 × W1, 615 (whole batch of replacement trolley rail end) x H1, 470mm (cover above)
The main weight	Approximately 1,630 kg: (body only)
